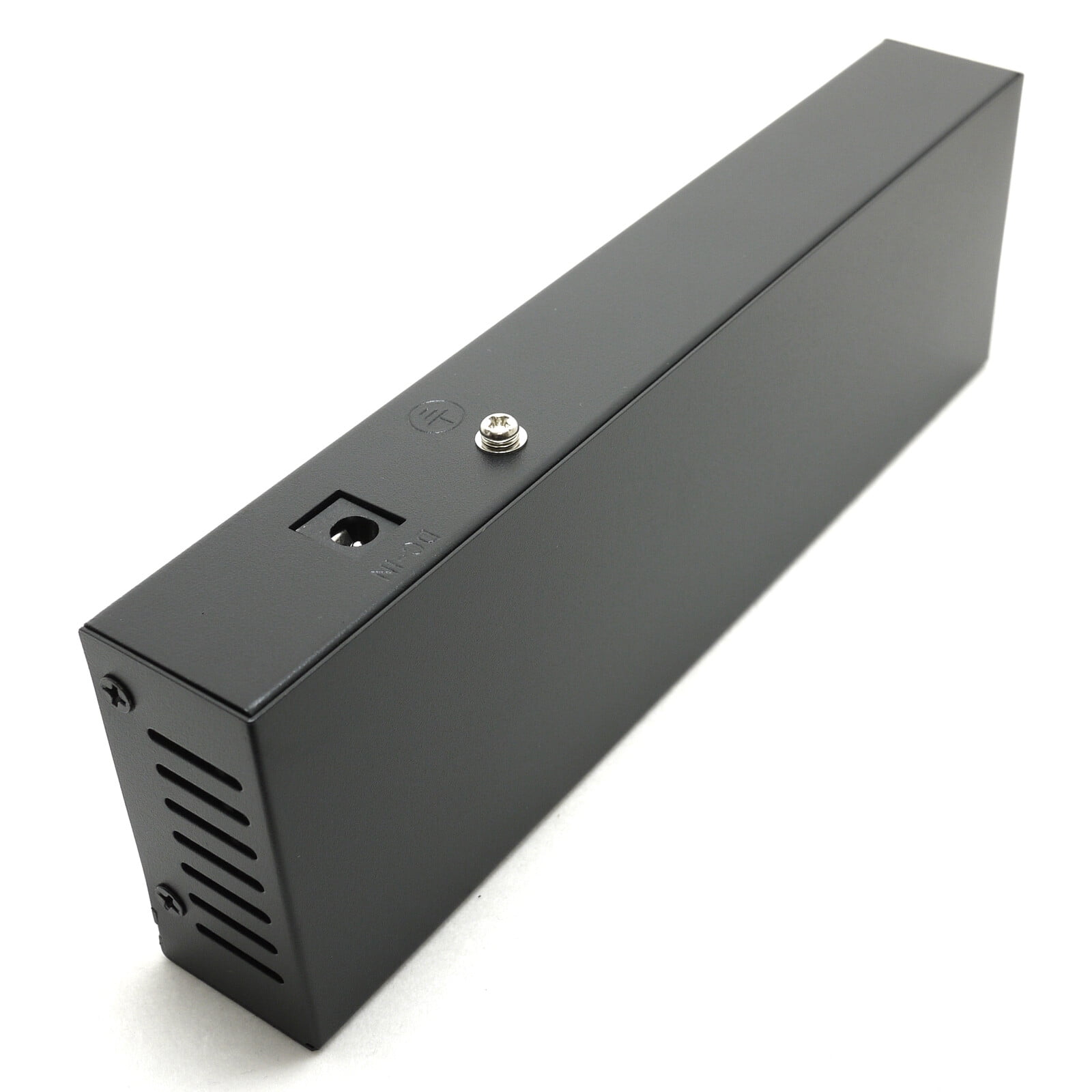

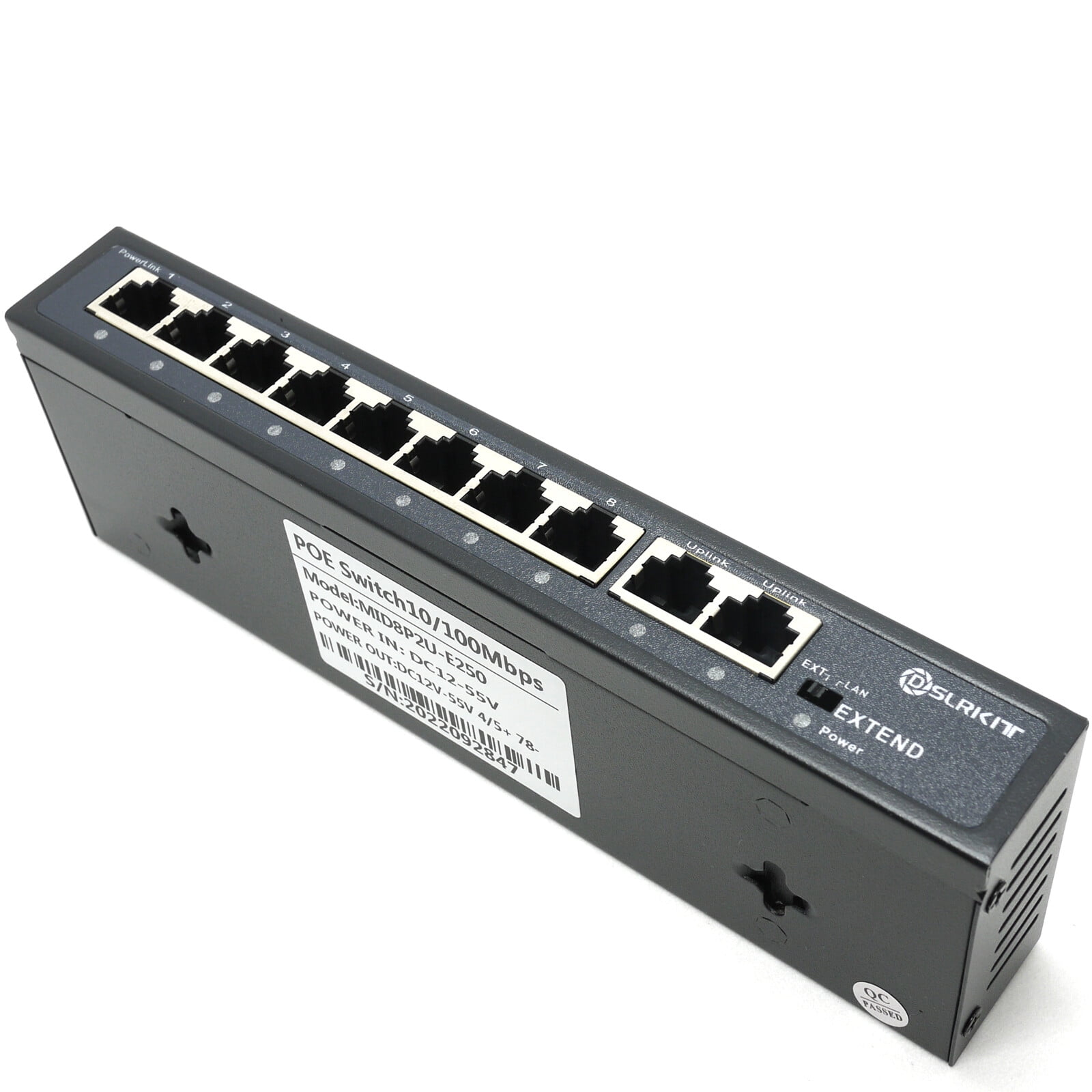

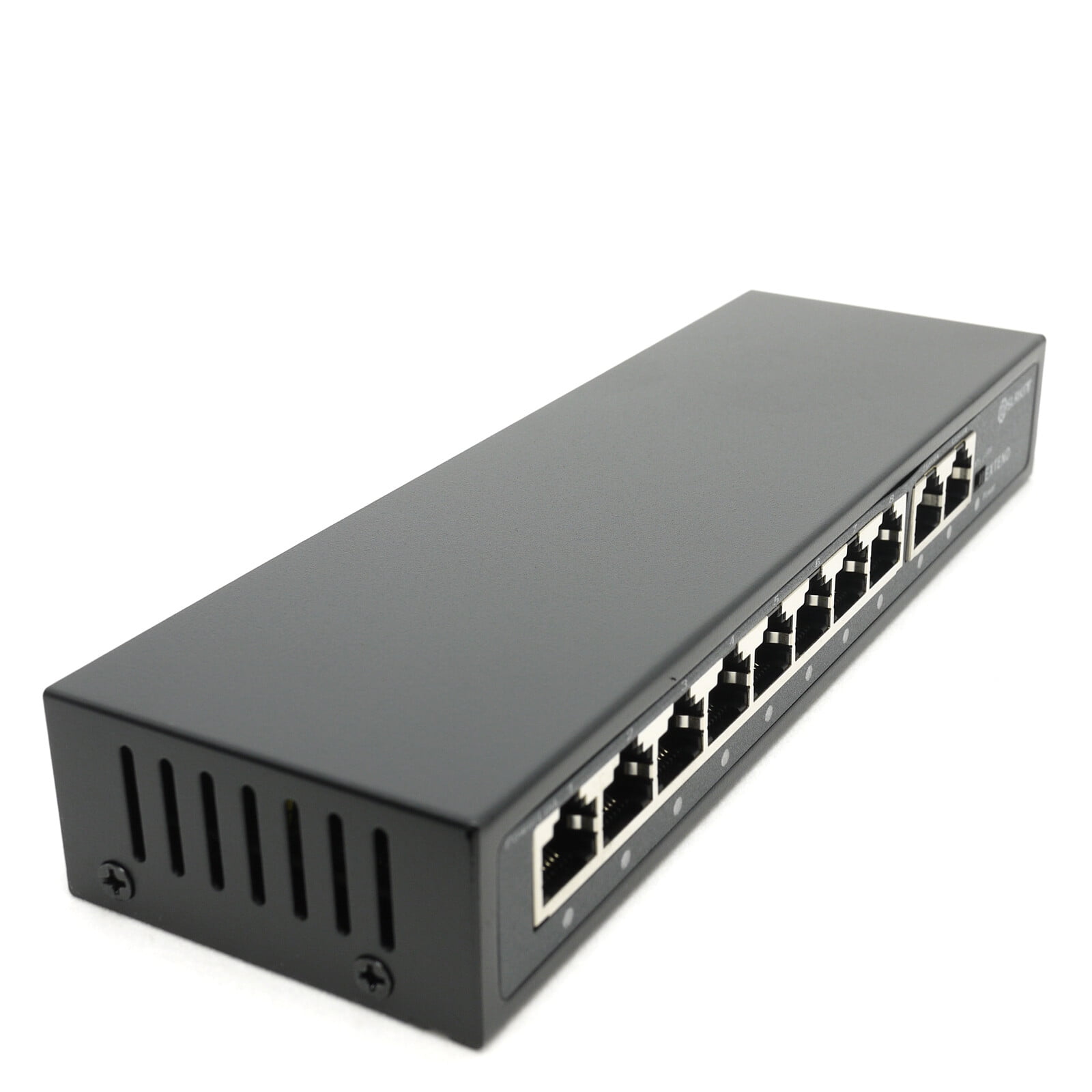

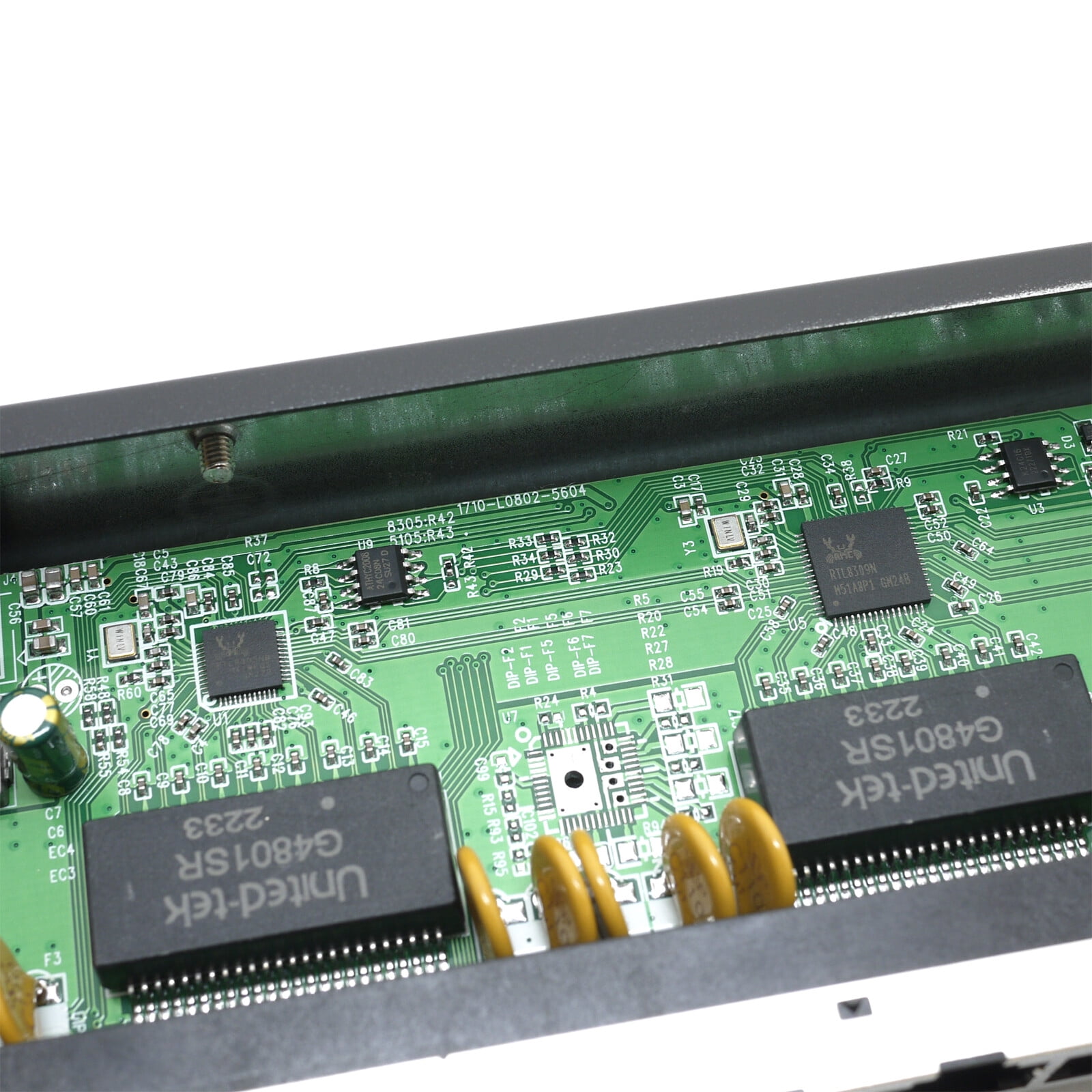

DSLRKIT 250m 10 Ports 8 PoE Switch Injector Power Over Ethernet 52V 120W max140W

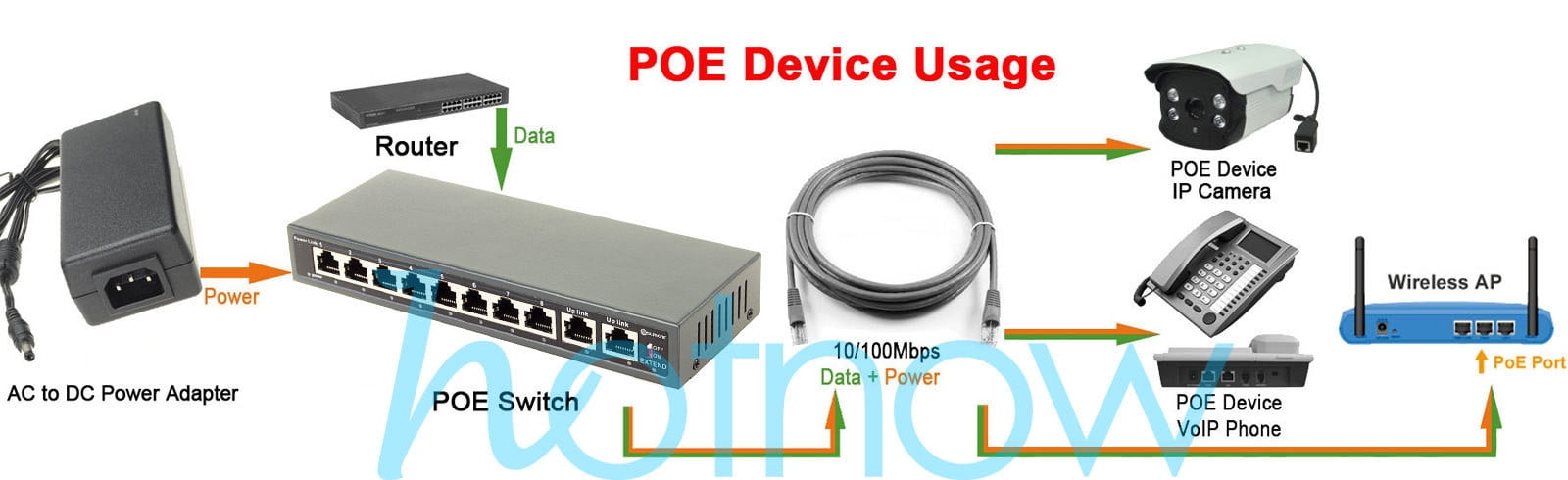

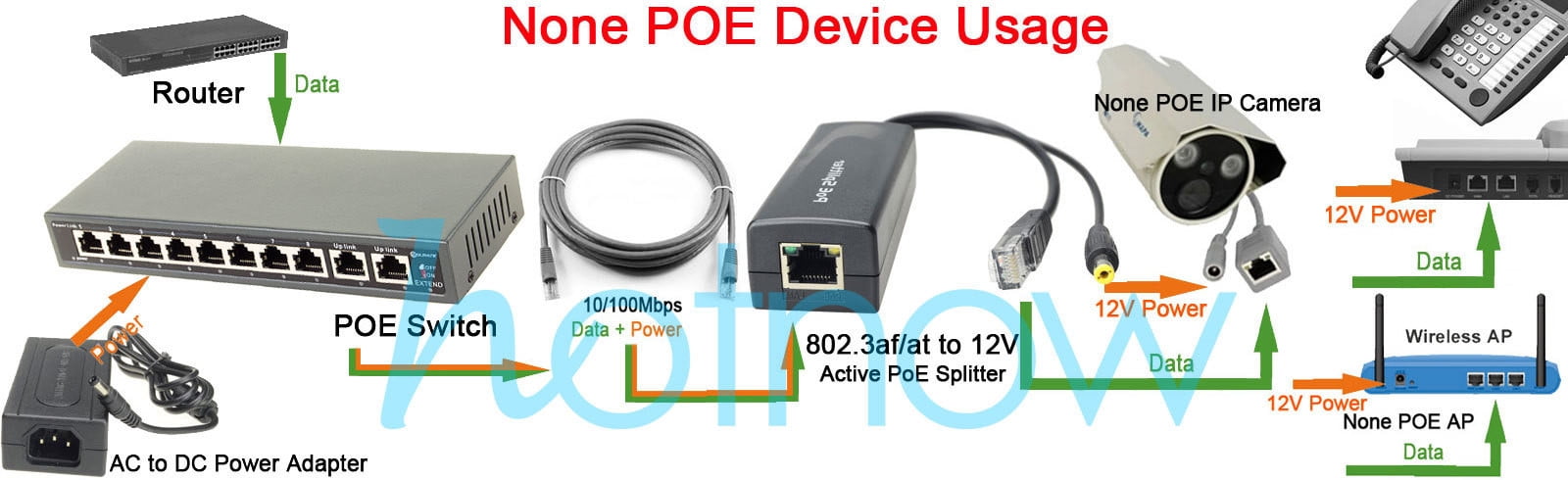

DSLRKIT MID8P2U-E250Passive PoE Injector Switch<br>&nbsp;<br>Suitable for brands with 802.3af/802.3at PoE Powered Devices(PD) &nbsp;<br>Support EXTEND mode, max Network Cable length to 250 meters<br>NOTE. When EXTEND mode enable, the Max bandwidth for the Power Link (PoE) port 1-8 network port will be reduced to 10Mbps for each one. Please check your IP CAMERA's&nbsp; bit stream setting. We recommend the value does not over 8Mbps(8192Kbps).<br>(The up-link is not affected, it will always working at 100Mbps max speed)<br>10&nbsp;Ports (2Uplink,&nbsp;8 PoE)10/100Mbps<br>Midspan Mode-B<br>Unsolicited Power(4,5+/7,8-)<br>Compatible IEEE 802.3af/at, Per port Max 50Watt<br>&nbsp;<br>Wall Mount<br>52V 120Watt(Max.140W)<br>(If you switch to the EXTEND mode, the Max allowable Network Cable length will increased to 250 meters. So we use 52V power adapter. This will avoids the power loss over the long distances, and will make sure the PoE IP Camera working.)<br>((Please select according your device power consumption, in order to ensure device stable running, the total power consumption should not exceed 120watt of the power supply))<br>If your camera is with word “12V/PoE” as this picture shows, then please select this 52V&nbsp;PoE Switch, do not select 12V PoE Switch.<br><br>Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V(or 52V) PoE Ethernet port<br>This is an Passive&nbsp;Power Over Ethernet of 5 port 10 / 100Mbps-T Ethernet switches, including&nbsp;8 unsolicited PoE Ethernet ports and&nbsp;2 Uplink ports. With an external 110V-240VAC to 52VDC power supply adapter, any one of the&nbsp;8 port can provide output power, each Ethernet port can provide network transmission speeds of up to 10 / 100Mbps , with Cat5 / 5e / 6 network cable.<br>Which compatible with IEEE 802.3af/at Mode-B(4,5+/7,8-) POE switch device, but it does NOT include the 802.3af/at compliant detection feature.&nbsp; It supplies power NO MATTER WHAT, so don't plug the "Power Link 1~8" side into anything that isn't ready for it.<br>This POE switch only support 10/100M connection, PoE ports do not support Gigabit ethernet connection, because&nbsp; "Power Link 1~8" port using 4,5,7,8 pin as power transfer, Please <br>do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "Power Link 1~8" port, this will damage your device.<br>Gigabit(1000Mbps) ethernet device&nbsp;<br>Please do not access "Power Link port" this will damage your device.<br>Compatible all&nbsp;802.3af/at device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....<br><br>Features:<br>10&nbsp;x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8-Ports PoE function<br>Support EXTEND mode, max Network Cable length to 250 meters.<br>&nbsp; <br>Midspan Mode-B Unsolicited Power(4,5+/7,8-)<br>Supports PoE power up to 120W for all PoE ports, Per port Max 52V 1A or 50Watt<br>Supports PoE IEEE802.3af/at compliant Powered Device (PD)<br>Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.<br>Full/half duplex transfer mode for each port.<br>Specification:<br>ALL Port:<br>Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with&nbsp;4 pairs UTP Cat5/5e/6 cable。<br><br>Power Link&nbsp;Port&nbsp;1-8:<br>any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs)<br>Power LED<br>LED ON: power on. LED OUT: power off<br>Green&nbsp;Light LINK/ACT<br>LED ON Indicates the port is connected to a network device and has been started<br>LED OFF Indicates that this port is not connected to a network device or has not been started<br>Standard<br>IEEE 802.3 10BASE-T Ethernet<br>IEEE 802.3u 100BASE-TX Fast Ethernet<br>IEEE 802.3x Full-Duplex flow control<br>Protocol<br>CSMA/CD Ethernet<br>Data Transfer Rate<br>Ethernet: 10Mbps (Half Duplex)20Mbps (Full Duplex)<br>Fast Ethernet: 100Mbps (Half Duplex)200Mbps (Full Duplex)<br>IC Chips <br>IC Plus IP178G + IP175G<br>Network Media(Cable)<br>10Base-T(EXTEND mode): UTP category 5e, 6 cable (maximum 250m) EIA/TIA-568 100Ω STP (maximum 250m)<br>100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maxi

• 10 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8-Ports PoE function
• Support EXTEND mode, max Network Cable length to 250 meters.
• Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with 4 pairs UTP Cat5/5e/6 cable。
• Fast Ethernet: 100Mbps (Half Duplex)200Mbps (Full Duplex)
